save_to_pcap now supports PCap-NG for Wireshark

Posted December 15th 2013

Problem: you want to sniff packets from many SS7 signalling timeslots on many E1/T1s at the same time and analyse them with Wireshark.

Until now, the only way to know which packet came from where was to look at the DPC/OPC. Why? Because the PCap file format, used by Wireshark, tcpdump and many other tools, doesn't have any way to keep track of which interface a packet came from.

Solution: PCap-NG is a completely new file format which lets you keep track of which interface a packet came from. Wireshark understands PCap-NG (and, of course, classic PCap).


The C sample code from Corelatus includes a program called 'save_to_pcap' which takes SS7 packets from Corelatus E1/T1 and SDH/SONET hardware and translates them to PCap so that Wireshark can read them.

'save_to_pcap' now saves to PCap-NG by default. Wireshark 10.8 (released in June 2012) reads and writes PCap-NG by default. Here's how to capture packets from 8 signalling channels at the same time:

  $ ./save_to_pcap -n 8 1A 1B 2A 2B 16 2 load_generator.pcapng
  monitoring 1A:16
  monitoring 1B:16
  monitoring 2A:16
  monitoring 2B:16
  monitoring 1A:2
  monitoring 1B:2
  monitoring 2A:2
  monitoring 2B:2
  capturing packets, press ^C to abort
  saving to file load_generator.pcapng.1
  saving to file load_generator.pcapng.2

I used '-n 8' to force the capture file to rotate after 8 packets. That gives us clean, closed file to look at. Here's what it looks like in wireshark:

screen capture of the wireshark main application window

I've drawn yellow ellipses around the new parts. To get the "Interface ID" column:

  1. right-click on one of the existing column headings
  2. select "Column Preferences"
  3. select "Field type: Custom" and "Field name: frame.interface_id"
  4. Add
  5. OK

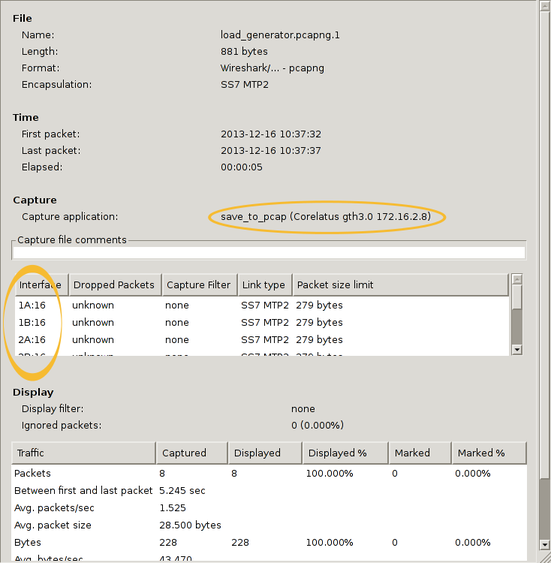

There's actually more information in the PCap-NG file. Wireshark shows it in the Statistics/Summary menu. This shows you the full interface names, i.e. "interface 1" is actually E1/T1 port 1B, timeslot 16 and you can also see exactly which GTH the capture came from.

screen capture of the wireshark statistics dialog

You can also use 'frame.interface_id' in filter expressions.

PCap-NG is a nice format

The PCap-NG format is nicely designed, much better than the original PCap format. Had PCap-NG been around 13 years ago, we probably would have made GTH output traces directly in this format. It's flexible enough to let us include all sorts of information, e.g. we could even add layer 1 status changes on a separate "interface".

Wireshark limitations

PCap-NG is still relatively new in Wireshark, so there are few things that will probably improve with time. The ones I noticed are:

Getting the code

The C sample code is here and also on github.
